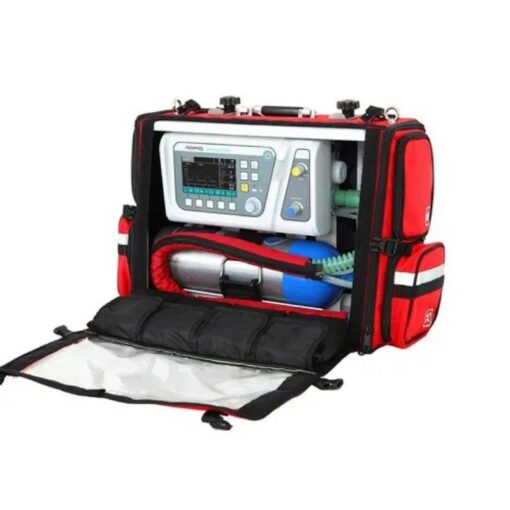

Aeonmed –Shangrila 510S Portable Ventilator

Description

Aeonmed Shangrila 510S is a compact and portable emergency ventilator, ideal for both hospital transport and pre-hospital emergency use. Designed with intuitive controls, robust construction, and advanced ventilation modes, it ensures reliable respiratory support in critical care scenarios. Whether used in ambulances, ERs, or field operations, the Shangrila 510S combines precision and portability for optimal patient outcomes.
Features:
• Durable Construction – Withstands rough environments; ideal for military, EMS, and disaster relief
• Portable & Lightweight Design – Easy to carry and operate during transport or field use
• Rechargeable Internal Battery – Long-lasting backup during power outages or transit
• Manual & Auto Ventilation – Provides flexibility during CPR or patient transport
• Multi-Mode Ventilation – Supports volume and pressure-controlled modes
• Easy-to-Use Interface – Clearly labeled knobs and gauges for rapid setup

Specifications:
• Supply Gas: O 2 , 0.25~0.6 MPa
• Power Supply: AC100~240 V, 50 Hz/60 Hz, ≤65 VA
• Screen Size: 5〞LCD Screen
• Maximum Security Pressure: ≤8 KPa
• Compliance: ≤4 ml /100 Pa
• Dimension (WxDxH): 168 mm x 156 mm x 300 mm
• Battery Operating Time: Approx. 4.5H
• Weight: 3.2 kg (Main unit) ,8 kg (Main unit & Accessories)
• Tidal Volume: 0~2000 ml
• Respiration Rate: 1~120 bpm (A/C mode)
• I:E Ratio: 1:10~4:1
• FiO 2 : 40%~100%
• Trigger Sensitivity: Pressure trigger: -20~0 cmH 2 O
• Flow Trigger: 2~30 L/min
• PEEP: 0~30 cmH 2 O
