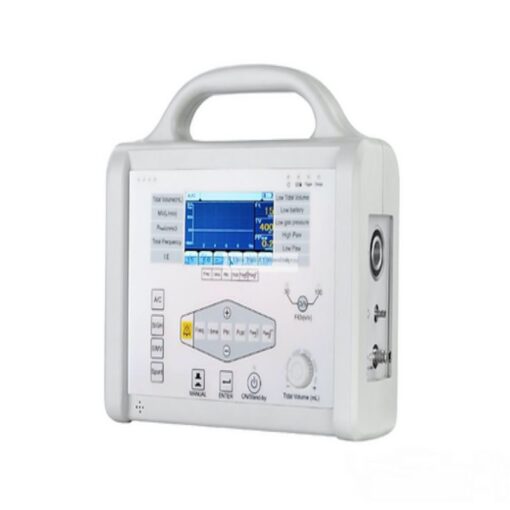

Allied – Respiratory Ventilator – HFS3100A

Description

The portable aspect of the device means that it can be easily moved and set up in different locations, which is especially useful in emergency situations where the patient needs to be transported or when there is a shortage of stationary ventilators. These devices are usually compact, lightweight, and have battery-powered options to provide uninterrupted respiratory support in the event of power failure.
Features:
• Invasive/Non-Invasive ventilator
• Pneumatic driven and electric controlled, time switch, pressure limit, volume control, apnea ventilation
• Application Department: Ambulance, Emergency Department, Surgery department, ward, ICU
• Ventilation mode: A/C, A/C+SIGH, SIMV, SPONT, MANUAL

Specifications:
• Brand: Allied
• Model: HFS3100A
• LCD screen: TFT 4.3″
• Tidal volume: 30-2400m1, continuously adjustable
• Minute ventilation volume: 18L/min, continuously adjustable
• O2%: 50%, 100%
• Airway pressure upper limit: -20.0~0.0cmH2O
• Output pressure: 0.28~0.6MPa
• Output flow: 60L/min
• Backup ventilation frequency: 2-80bpm
• DC: Internal rechargeable lithium battery 14.8v 2200mAh; AC: 110-240V/50-60Hz
